Product Name: | Toyota Radiator | Core Material: | Aluminium |
---|---|---|---|
Core Size: | PA 400 * 728 * 16 Mm | Tank Size: | 33 / 48 * 756 Mm |
AT / MT: | AT | Oil Cooler: | Φ 22 * 375 Mm |
Place Of Origin: | Guangzhou China | Carton Size: | 800 * 125 * 565 Mm |
Cartype: | CAMRY ' 03 ACV30 | OEM: | 16400 - 28280 |
DPI: | 2437 | ||
Highlight: | toyota radiator replacement,toyota camry radiator |

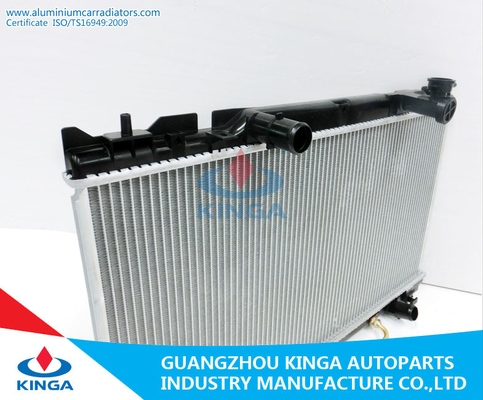

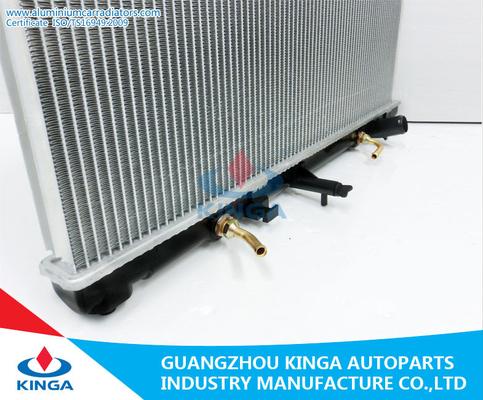

2003 Professional Toyota Radiator for CAMRY ACV30 Auto Cooling OEM 16400 - 28280
Our Services
1. Competitive Price
We have many excellent long-term cooperation suppliers to provide us with alumium material and some other parts,
which not also high quality, but also good price, so the price of our radiator is very competitive.
2. High Quality
For auto radiator, we all is using high quality materials, we have advanced production equipment, strict requirements
for production process, and perfect control, so the finished product is very good.
3. Perfect After-sale Service
According to our company's rule, we support one-year quality guarantee after you receive the goods. During this time,
if you meet any quality problem, please contact with us, we can provide you with an replacement. The premise is
non-human damage.
Auto radiator maintain under high temparature
The radiator in the car has an important role in cooling, heat dissipation.Continuous high temperature
in summer, the car radiator especially prone to a few glitches, water shortage, water tank corrosion,
leakage, etc will directly cause the "boiled", is the water tank temperature reaches the boiling point.
Bad engine cooling, the temperature is too high, parts expansion can make the parts fit clearance is
reduced, on the other hand the temperature too high oil viscosity is reduced, in this case, the parts
wear.If you don't immediately make appropriate processing, the engine is likely to damage cause
serious machine damage accident.
Radiator Structure Chart
Radiator Brazed Radiator |
||
(1) Filler Neck |
(8) Side Plate |
(15) KINGA Logo |
(2) Top Header Plate |
(9) Core Height |
(16) Bottom Header Plate |
(3) Inlet Pipe |
(10) Fin |
(17) Water switch |
(4) Top Tank |
(11) Tube |
(18) Bottom Tank |
(5) Top Mounting Pins |
(12) Core Width |
(19) Oil Cooler |
(6) Fan Mount |
(13) Core Thickness |
(20) Outlet Pipe |
(7) Overflow Pipe |
(14) Clip |
|
More Information about our Kinga radiator
TOYOTA |
BENZ |
BMW |
HONDA |
HYUNDAI |
MAZDA |
NISSAN |
VOLKSWANGEN |
GMC |
SUBARU |
FORD |
FIAT |
DAEWOO |
LAND ROVER |
MITSUBISHI |
DAIHATSU |
PEUGEOT |
LEXUS |
CITROEN |
RENAULT |
SUZUKI |
VOLVO |
CHRYSLER |
SUBARU |
OPEL |
KJ NO. |
Cartype |
OEM |
Car Brand |
Size |
KJ-12039 |
CAMRY'03 MCV30 |
16400-20260/20270/20320/0A240 |
TOYOTA |
PA16/26AT |
KJ-12103 |
CELICA'87-89/CARINA'83 |
16400-74070 |
TOYOTA |
PA16/26AT |
KJ-13009 |
TROOPER'92-02 |
8943752755/8943752756 |
ISUZU |
PA16/26/32AT |
KJ-14030A |
LANCER'03-06 |
MR464612 |
MITSUBISHI |
PA16/26/36MT |
KJ-15009 |
BLUEBIRD'93-98 U13 |
21460-0E200/0E600/1E400 |
NISSAN |
PA16/26AT |
KJ-15018 |
SUNNY'00 N16/B15/QG13 |
21410-4M400/4M407 |
NISSAN |
PA22/26MT |
KJ-16019 |
KIA SEPHIA'93 |
OK201-15-200B |
MAZDA |
PA16/26AT |
KJ-17032 |
ACCORD'97-00 CF4 |
19010-PDA-E01 |
HONDA |
PA16/26MT |
KJ-17091 |
CRV'97-01 2.0L RD1 |
19010-P3F-901 |
HONDA |
PA16/26AT |
KJ-19019 |
CHARADE'87-92 1.0L L3 |
16400-87767 |
DAIHATSU |
PA16/26MT |
KJ-21071 |
KIA SEPHIA'96/CARENS'02 |
OK2A2-15-200B/ |
HYUNDAI |
PA16/26AT |
KJ-32027 |
LUMINA'03 VT V8 |
92147802 |
G.M.C |
PA26/32AT |
KJ-40085 |
W211/E200/E240/E320/E350'02 |
211 500 0102/1302 |
BENZ |
PA16/26AT |
KJ-42011A |
CAMBO/CORSA B'93-00 |
1300153 |
OPEL |
PA16/26AT |
KJ-44015 |
530/535/730/735'85-93 |
1723467 |
BMW |
PA32/36AT |
KJ-50026 |
PEUGEOT 407'04-/CITROEN C5'04- |
1330.J9/1330.V3 |
PEUGEOT |
PA16/22/26MT |
KJ-51007 |
CLIO/KANGOO 1.2'98-01 |
7700430784 |
RENAULT |
PA2226/MT |
KJ-52006 |
BEETLE'98-01 |
IC0121253A/C |
VOLKSWANGEN |
PA26/32MT |
KJ-53004 |
CITROEN XANTIA 1.9D'93- |
1301.R5 |
CITROEN |
PA16/26MT |
KJ-54011 |
RANGE ROVER SPORT'10-13 |
LR015560 |
LAND ROVER |
PA36/MT |
KJ-61011 |
FIAT UNO'83- |
7556132/7556137/773940 |
FIAT |
PA16/26MT |
KJ-73005 |
VOLVO 940'90-2.0I/2.3I |
8601002/8603855 |
VOLVO |
PA32/AT ...... |
......
NOTICE
1). Compare your radiator to the picture below .
2). Flush the entire cooling system of the vehicle .
3). Use the astm-approved antifreeze and distilled or de-ionized water .

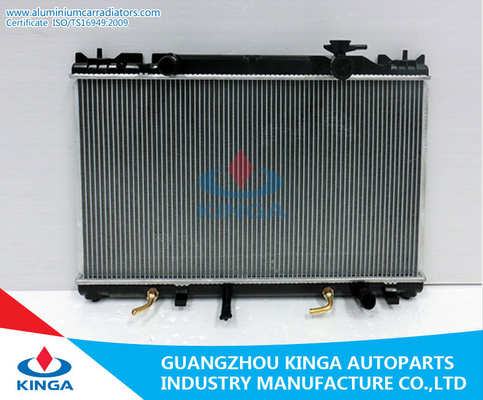

Toyota CAMRY’03 ACV30
View of Condenser Workshop
Please feel free to contact us for any question ! Join us , this is a new beginning of the journey ,
you will feel the Most Efficient Service , Best Quality and Excellent Reputation .Thanks !
