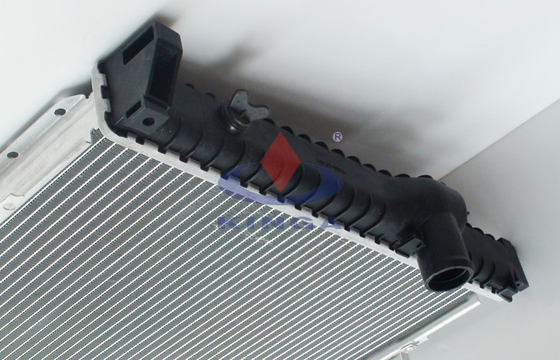

High Performance 1986 1995 bmw 540 radiator MT OEM 1702453 / 2242138 / 2243445

Large Image : High Performance 1986 1995 bmw 540 radiator MT OEM 1702453 / 2242138 / 2243445

Product Details:

Place of Origin:	MADE IN CHINA
Brand Name:	KINGA
Certification:	ISO / TS 16949
Model Number:	KJ-44018-PA32

Payment & Shipping Terms:

Minimum Order Quantity:	30PCS
Price:	Negotiation
Packaging Details:	Neutral Packing / Foam Corner Protector / Blister Packing / Cardboard Protector
Delivery Time:	45 Days
Payment Terms:	T/T L/C
Supply Ability:	600,000 PCS / Year
Price Terms:	FOB ShenZhen / GuangZhou

Contact Now

Detailed Product Description

Highlight:	performance cooling radiators

High Performance 1986 1995 bmw 540 radiator MT OEM 1702453 / 2242138 / 2243445

Item Specifications

Manufacturer Part Number	KJ-44018
OEM	1702453 / 2242138 / 2243445
Car Type	530 / 540 / 740 / 840i 1986 1995 MT
Carton Size	810 * 110 * 510 mm
Transmission	MT
Thickness	32 mm
Core Size	650 * 438 * 32 mm
Tank Size	60 / 60 * 457.5 mm
Core Material	Aluminum
Tank Material	Plastic

More Information

KJ-44017-PA32	530/730/750/850I'86-95	PA32/AT
KJ-44018-PA32	530/730/750/850I'86-95	PA32/MT
KJ-44018-PA40	530/730/750/850I'86-95	PA40/MT

Question & Answer

20GP container about 450pcs
40HQ container about 1050pcs
Warranty:12 months

Structure Chart

Brazed Radiator Structure
1. Filler Neck	8. Side Plate	15. KINGA Logo
2. Top Header Plate	9. Core Height	16. Bottom Header Plate
3. Inlet Pipe	10. Fin	17. Water switch
4. Top Tank	11. Tube	18. Bottom Tank
5. Top Mounting Pins	12. Core Width	19. Oil Cooler
6. Fan Mount	13. Core Thickness	20. Outlet Pipe
7. Overflow Pipe	14. Clip

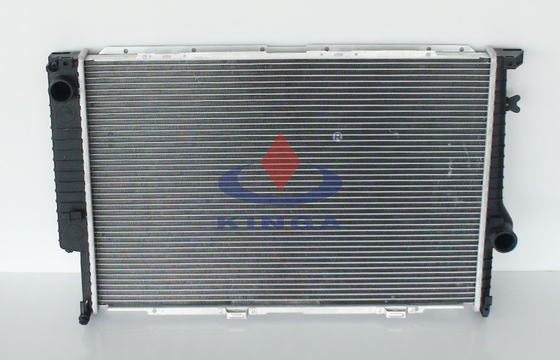

High Performance 1986 1995 bmw 540 radiator MT OEM 1702453 / 2242138 / 2243445

Packing

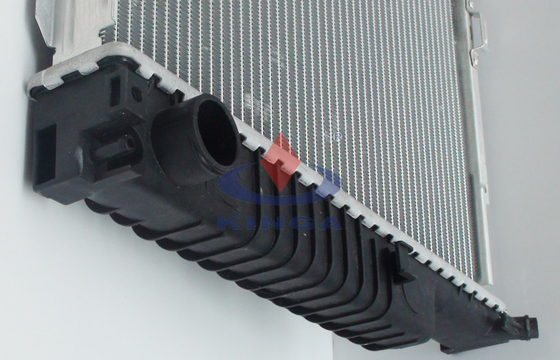

High Performance 1986 1995 bmw 540 radiator MT OEM 1702453 / 2242138 / 2243445

Packaging design according to customer requirements.

NOTICE

1. Compare your radiator to the picture below

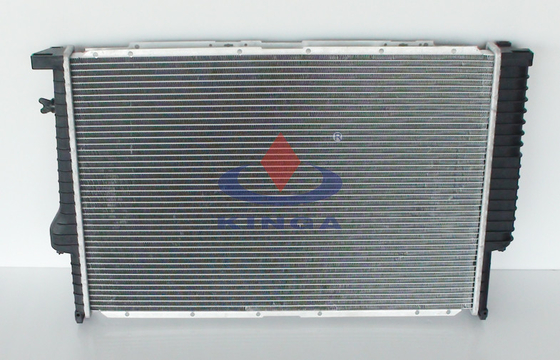

High Performance 1986 1995 bmw 540 radiator MT OEM 1702453 / 2242138 / 2243445

2. Flush the entire cooling system of the vehicle.

3. Use the astm-approved antifreeze and distilled or de-ionized water.
