Product Details:
Payment & Shipping Terms:
|
| Highlight: | mitsubishi pajero radiator,aluminum car parts |
||
|---|---|---|---|

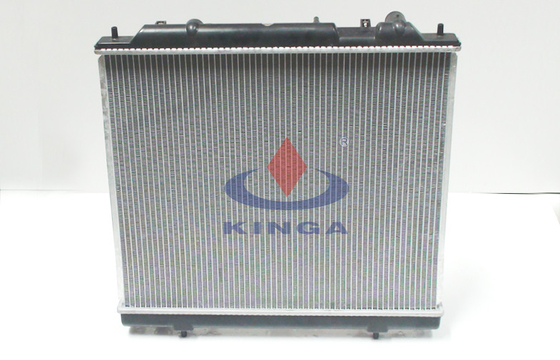

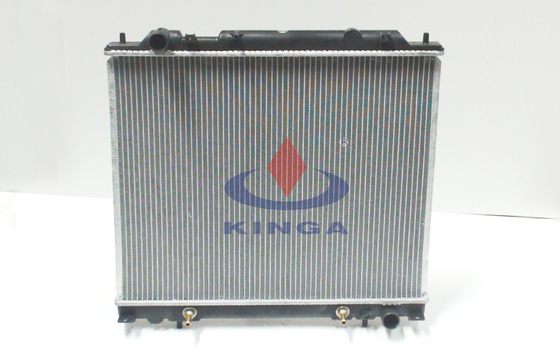

Car Radiator replacement for Mitsubishi Radiator of Space Gear 1994 AT MR127283 / MR127888
Item Specifications
| Manufacturer Part Number | KJ-14103 |
| OEM | MR26103 / MR127283 / MR127888 |
| Car Type | L400 / Space Gear 1994 AT |
| Carton Size | 655 * 950 * 640 mm |
| Oil cooler | Φ 25 * 300 |
| Transmission | AT |
| Thickness | 16 / 26 mm |
| Core Size | 500 * 588 * 16 / 26 mm |
| Tank Size | 48 / 48 * 612 mm |
| Core Material | Aluminum |
| Tank Material | Plastic |
More Information
| KJ-14103-PA16 | L400/SPACE GEAR'94 | PA16/AT |
| KJ-14103-PA26 | L400/SPACE GEAR'94 | PA26/AT |
| KJ-14104-PA16 | L400/SPACE GEAR'94 | PA16/MT |
| KJ-14104-PA26 | L400/SPACE GEAR'94 | PA26/MT |
| KJ-14105A-PA16 | L400/SPACE GEAR'94 | PA16/AT |
| KJ-14105A-PA26 | L400/SPACE GEAR'94 | PA26/AT |
| KJ-14106A-PA16 | L400/SPACE GEAR'94 | PA16/MT |
| KJ-14106A-PA26 | L400/SPACE GEAR'94 | PA26/MT |
Question & Answer
20GP container about 450pcs
40HQ container about 1050pcs
Warranty:12 months
Structure Chart
| Brazed Radiator Structure | ||
| 1. Filler Neck | 8. Side Plate | 15. KINGA Logo |
| 2. Top Header Plate | 9. Core Height | 16. Bottom Header Plate |
| 3. Inlet Pipe | 10. Fin | 17. Water switch |
| 4. Top Tank | 11. Tube | 18. Bottom Tank |
| 5. Top Mounting Pins | 12. Core Width | 19. Oil Cooler |
| 6. Fan Mount | 13. Core Thickness | 20. Outlet Pipe |
| 7. Overflow Pipe | 14. Clip | |
Packing
Packaging design according to customer requirements.
NOTICE
1. Compare your radiator to the picture below
2. Flush the entire cooling system of the vehicle.
3. Use the astm-approved antifreeze and distilled or de-ionized water.
