1990 1994 toyota camry radiator OEM 16400-74680 / 16400-74690 SV30 / SV35 AT

Large Image : 1990 1994 toyota camry radiator OEM 16400-74680 / 16400-74690 SV30 / SV35 AT

Product Details:

Place of Origin:	MADE IN CHINA
Brand Name:	KINGA
Certification:	ISO / TS 16949
Model Number:	KJ-12005A-PA16 / 26

Payment & Shipping Terms:

Minimum Order Quantity:	30PCS
Price:	Negotiation
Packaging Details:	Neutral Packing / Foam Corner Protector / Blister Packing / Cardboard Protector
Delivery Time:	45 Days
Payment Terms:	T/T L/C
Supply Ability:	600,000 PCS / Year

Contact Now

Detailed Product Description

Highlight:

toyota radiator replacement

toyota corolla radiator

1990 1994 toyota camry radiator OEM 16400-74680 / 16400-74690 SV30 / SV35 AT

Item Specifications

Manufacturer Part Number	KJ-12005A
OEM	16400-74680 / 74690
Car Type	CAMRY 90 94 SV30 / SV35 AT
Carton Size	740 * 100 * 545 mm
Oil cooler	Φ 22 * 250
Transmission	AT
Thickness	16 mm
Core Size	375 * 668 * 16 / 26 mm
Tank Size	48 / 48 * 700 mm
Core Material	Aluminum
Tank Material	Plastic

More Information

KJ-12005A-PA16	CAMRY'90-94 SV30/SV35	PA16/AT
KJ-12005A-PA26	CAMRY'90-94 SV30/SV35	PA26/AT
KJ-12006A-PA16	CAMRY'90-94 SV30/SV35	PA16/MT
KJ-12006A-PA26	CAMRY'90-94 SV30/SV35	PA26/MT

Question & Answer

20GP container about 450pcs
40HQ container about 1050pcs
Warranty:12 months

Structure Chart

Brazed Radiator Structure
1. Filler Neck	8. Side Plate	15. KINGA Logo
2. Top Header Plate	9. Core Height	16. Bottom Header Plate
3. Inlet Pipe	10. Fin	17. Water switch
4. Top Tank	11. Tube	18. Bottom Tank
5. Top Mounting Pins	12. Core Width	19. Oil Cooler
6. Fan Mount	13. Core Thickness	20. Outlet Pipe
7. Overflow Pipe	14. Clip

1990 1994 toyota camry radiator OEM 16400-74680 / 16400-74690 SV30 / SV35 AT

Packing

1990 1994 toyota camry radiator OEM 16400-74680 / 16400-74690 SV30 / SV35 AT

Packaging design according to customer requirements.

NOTICE

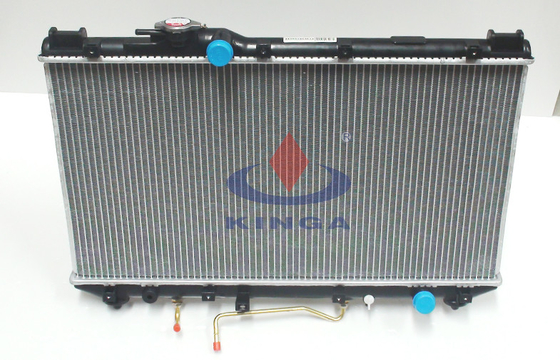

1. Compare your radiator to the picture below

1990 1994 toyota camry radiator OEM 16400-74680 / 16400-74690 SV30 / SV35 AT

2. Flush the entire cooling system of the vehicle.

3. Use the astm-approved antifreeze and distilled or de-ionized water.
